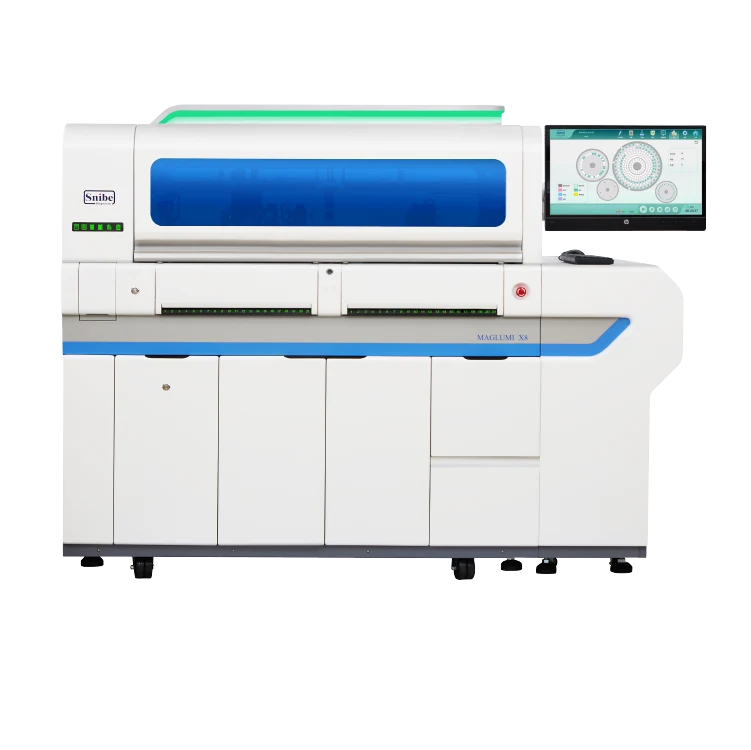

MAGLUMI X8
CLIA analyzers
Machines & equipment
High-throughput modular CLIA analyzer: up to 600 tests per hour per module, or 2,400 with four modules.
01 / A CLOSER LOOK
Features that
define the product.
- Up to 600 tests per hour per module and 2,400 with four modules.
- 300 sample positions, 42 reagent positions with RFID, and up to 2,800 walk-away tests.
- Continuous loading and disposable sample tips; one aspiration can support multiple tests.
- Real-time reagent/consumable monitoring and laboratory-automation connectivity.
02 / HOW IT WORKS
The technology.
ABEI-labelled direct chemiluminescence with magnetic-microbead separation. Disposable sample tips, single-cuvette reactions, four-group magnetic washing and temperature-controlled detection support the analytical workflow.
03 / TECHNICAL DETAILS
Specifications.
| Throughput | Up to 600 tests/hour (single module) |
|---|---|
| Four-module throughput | Up to 2,400 tests/hour |
| Sample positions | 300 |
| Reagent positions | 42 |
| Walk-away capacity | Up to 2,800 tests |
| Time to first result | 15 minutes (brochure value; assay dependent) |
| Incubation capacity | 252 cuvettes simultaneously |
| Incubation temperature | 37.0 ± 0.3 °C |
| Tip/cuvette storage | 576 tips / 2,912 cuvettes |
| Reagent working/storage temperatures | Working 8–12 °C; storage 2–8 °C |
| Dimensions | 192 × 118 × 150 cm (manufacturer sequence) |
| Weight | 670 kg |
| Power | AC 100–240 V, 50/60 Hz |
| Connectivity | Bidirectional LIS via TCP/IP and COM; SnibeLinker; TLA/LAS integration |
