Medsource Ozone / Immunoassay

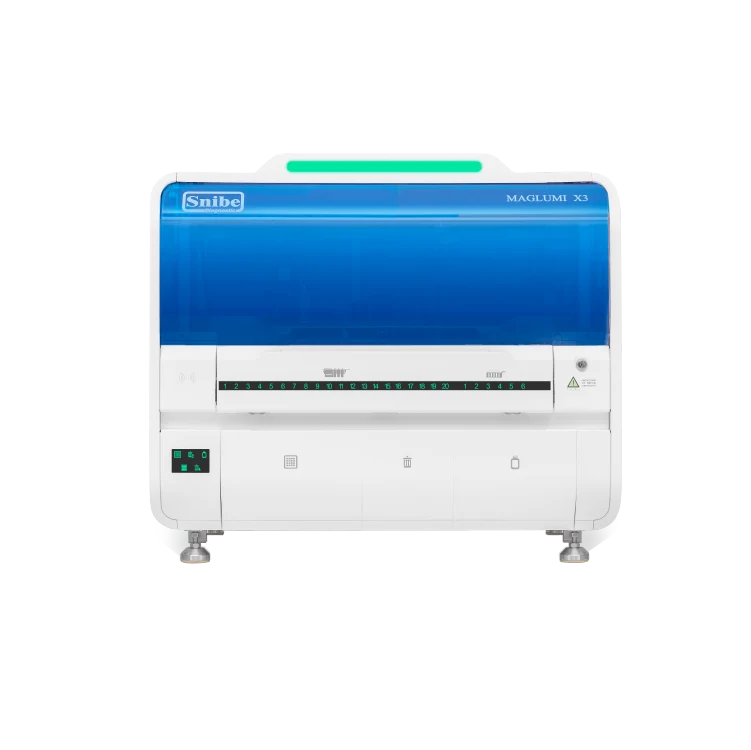

MAGLUMI X3
CLIA analyzers
Machines & equipment
Compact benchtop CLIA analyzer with 200 tests per hour and a footprint below 0.68 m².
01 / A CLOSER LOOK
Features that
define the product.
- 200 tests per hour; 72 sample positions and 20 reagent positions.
- Front-facing continuous loading of samples, reagents and consumables.
- Reagent RFID identification and 24-hour reagent-area refrigeration.
- Single-cuvette reaction design, status indicator lights and real-time monitoring.
02 / HOW IT WORKS
The technology.
ABEI chemiluminescence and magnetic-microbead separation. X-TECH combines a Teflon-coated reusable pipetting needle, single-cuvette five-sided incubation, non-contact vortex washing and temperature-controlled photomultiplier detection.
03 / TECHNICAL DETAILS
Specifications.
| Throughput | 200 tests/hour |
|---|---|
| Footprint | Below 0.68 m² |
| Sample positions | 72 |
| Reagent positions | 20 |
| Onboard reagent temperature | 10 ± 3 °C |
| Reagent storage temperature | 2–8 °C (storage, not onboard working temperature) |
| Incubation capacity | 80 cuvettes simultaneously |
| Incubation temperature | 37 ± 0.3 °C |
| Dimensions (H × W × D) | 78 × 90 × 75 cm |
| Weight | 127 kg |
| Connectivity | Bidirectional SnibeLIS via TCP/IP and COM; SnibeLinker support |
