Agappe Diagnostics / Pre-analytical equipment
Mispa Label

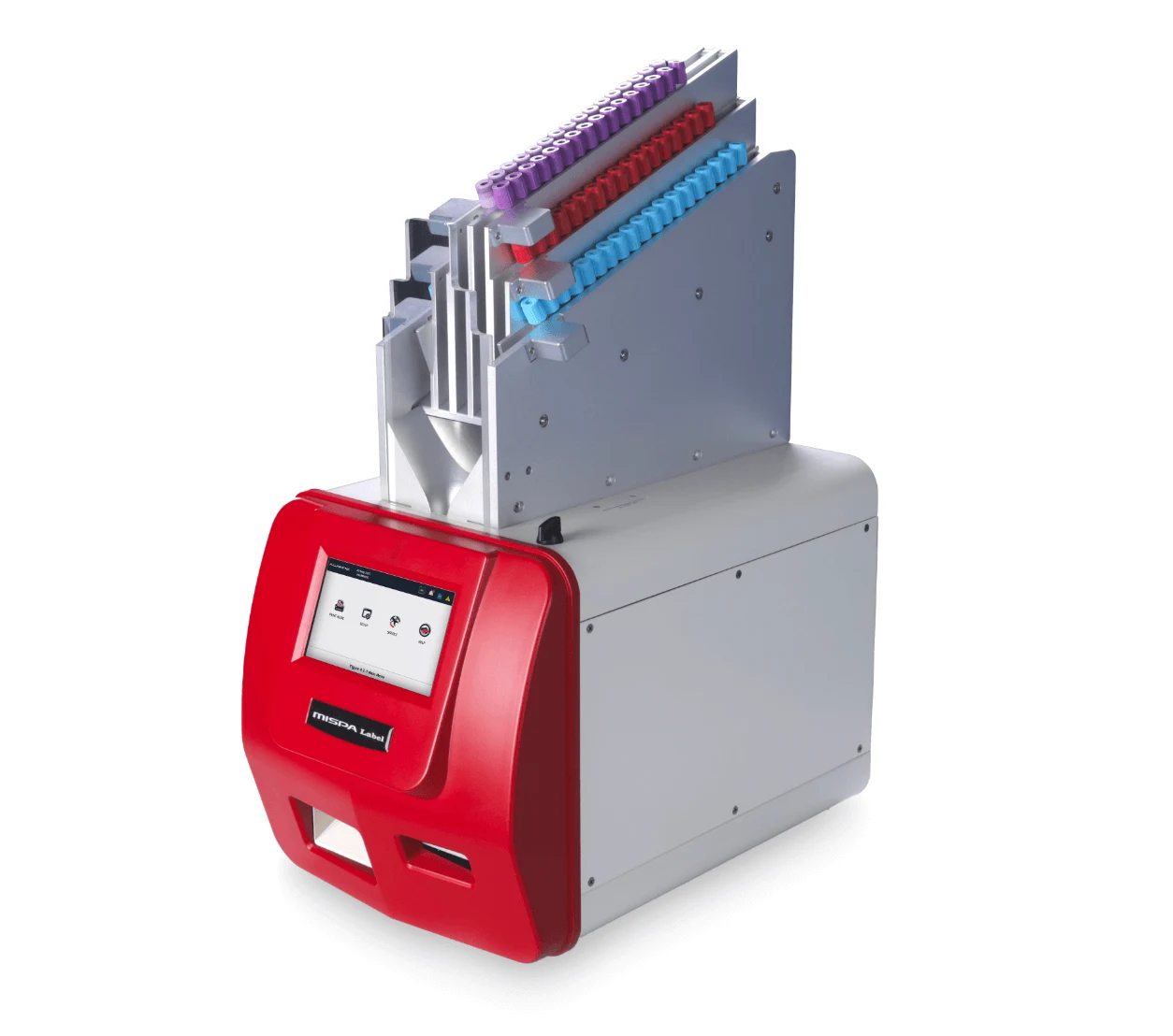

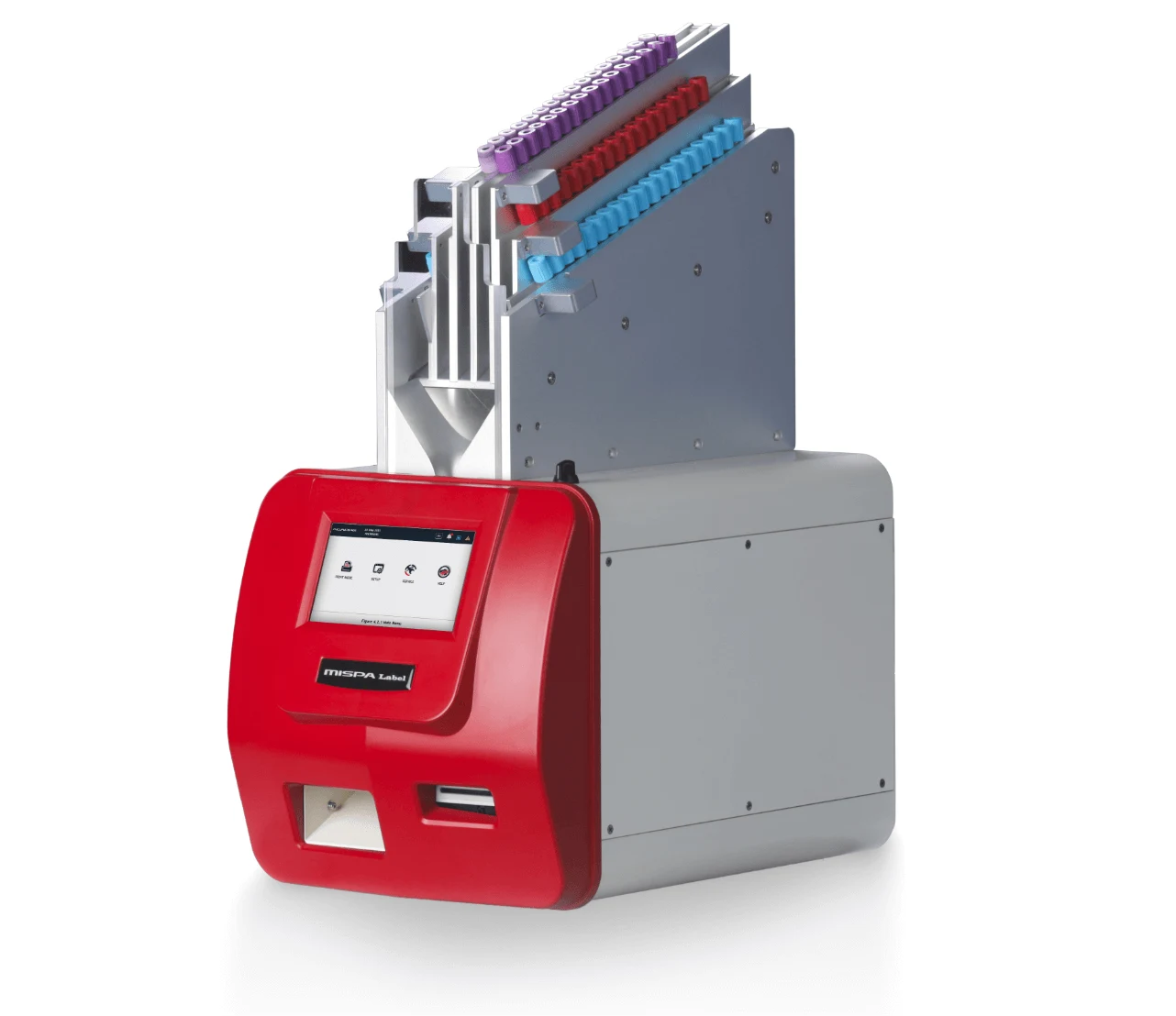

Automated Tube Labelling system
Machines & equipment
Mispa Label is listed in Agappe’s pre-analytical equipment collection as a automated Tube Labelling system.
01 / A CLOSER LOOK
Features that
define the product.
- 7” TFT Touch Screen display matching the eye contrast ratio
- 6 tube racks with capacity of 120 tubes
- Throughput of 450 Tubes/Hr
- Automatic tube positioning & identification
- Thermal printer with 3 modes (primary, standby & STAT)
- Customizable category mapping for the tubes
- Auxiliary printer available for abnormal container label printing (Urine container, Petri Dish etc)
- Flexible machine design saves valuable space in the lab
- HIS/LIS with Bi-Directional connectivity
- USB, Ethernet, WIFI interface
02 / HOW IT WORKS
The technology.
IMS Technology - Intelligent Mechanical Shift
03 / TECHNICAL DETAILS
Specifications.
- 6 Tube racks with a capacity of 120 tubes – 6 racks x 20 tubes
- Tube types/Sizes – 13 mm x 75 mm with Cap | 13 mm x 100 mm with Cap
- Barcodes Available – 1D UPC A, UPC E, EAN13, EAN8, I 25, CODABAR, CODE39, CODE93, CODE128
