Agappe Diagnostics / Point of care
Mispa Chem Dx
Auto Dry Biochemistry Analyzer
Machines & equipment
Mispa Chem Dx is listed in Agappe’s point of care collection as a auto Dry Biochemistry Analyzer.
01 / A CLOSER LOOK
Features that
define the product.
- Low Sample Consumption
- Easy to Use
- Maintenance Free
- Accurate Result

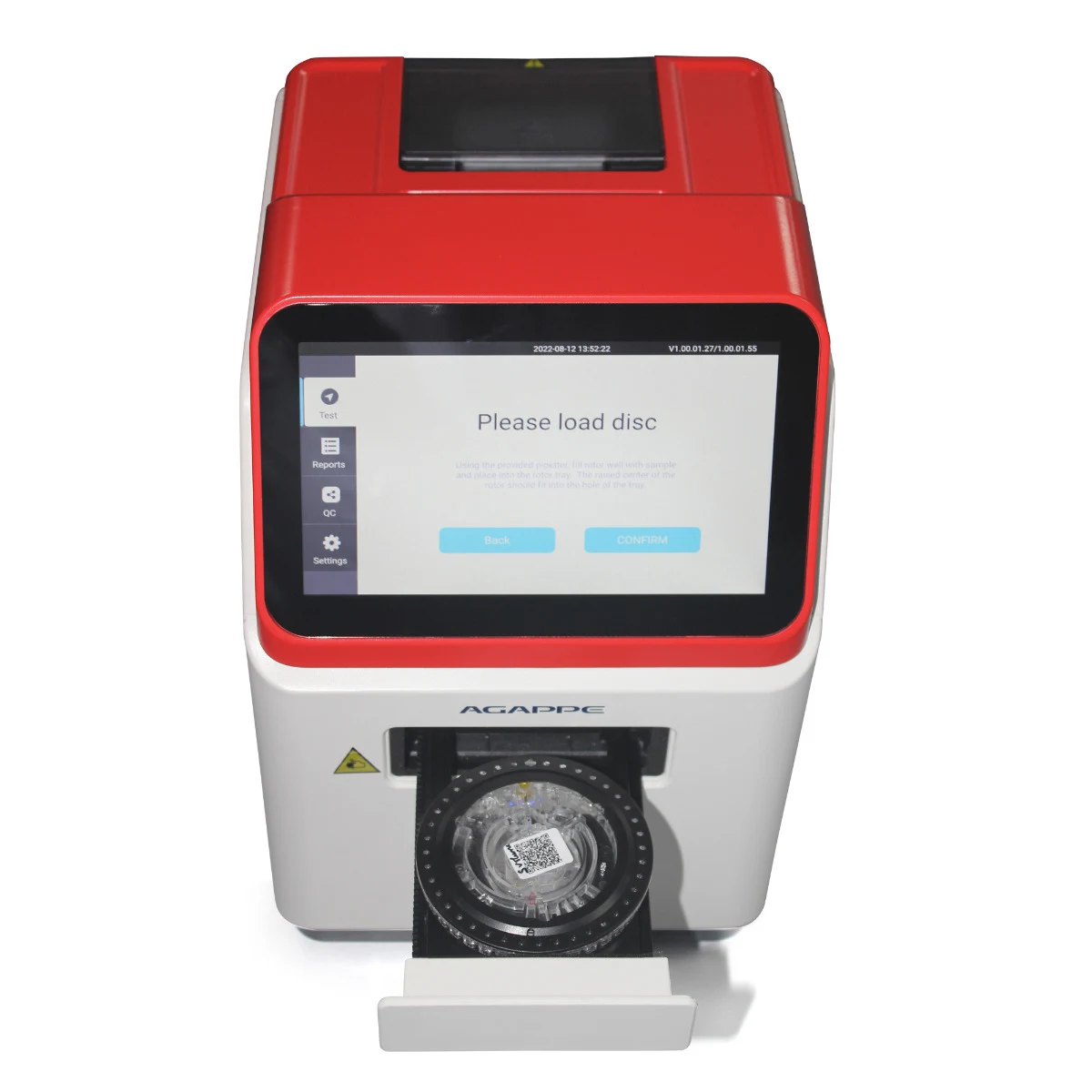

- Disposable reagent disc
- Sample volume: 100µl
- Testing time: 12 minutes / sample
- Temperature: 37°C ± 0.3°C
- Resolution: 0.001Abs Absorbance: 0-3.0Abs
- Sample type: Heparinized whole blood, serum, plasma (heparin)
- QC&Calibration: IQC (Intelligent Quality Control/Calibration ）
- Work condition: Temperature:10-30°C Humidity: 30%-70%
- Testing method: End point, kinetic, fixed time, turbidmetry etc
- Light source: 12V/20W, Halogen tungsten lamp with life span over 2500 hours
- Power supply: AC 100V-240V, 50-60Hz
- Display: Android 7.0 inch 800*480, multi-point capacitive touch screen
- Storage: 500,000 results
- Printer: Built-in thermal printer Interface: 4 USB ports, 1 LAN port
- Dimension: 315*375*475mm. 4.2kg(N.W.), 7kg(G.W.)
02 / HOW IT WORKS
The technology.
MISPA Chem Dx works on Absorption Spectroscopy where change in absorbance is detected by an absorption spectrum and an algorithm is used to calculate the end concentration of the sample.
