Sensa Core / Electrolyte Analyzers
ST-100B Electrolyte
Electrolyte Analyzers
Machines & equipment

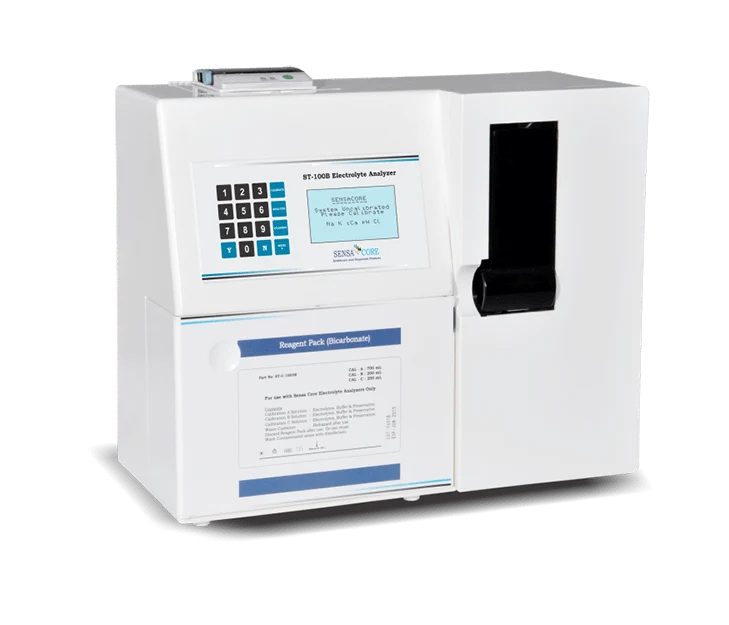

Sensa Core’s ST-100B Electrolyte analyzer is a completely automated, microprocessor controlled electrolyte system that uses current ISE technology to make electrolyte measurements.
01 / A CLOSER LOOK
Features that
define the product.
- Principle: Direct Measurement with ISE
- Parameters: Na, K, iCa, Cl, Li, pH, HCO3, TCO2
- Sample volume: 140 µL
- Throughput: 55 Results
- Result time: 60 Seconds
- Display: 128*64 Alphaneumeric Display
02 / HOW IT WORKS
The technology.
Direct Measurement with ISE
03 / TECHNICAL DETAILS
Specifications.
| Sample Volume | 140 µL |
|---|---|
| Sample Type | Whole Blood, Serum, Plasma, CSF & Urine |
| Parameters | Na, K, iCa, Cl, Li, pH, HCO3, TCO2 |
| External Integration | LIS Integration (Serial Port) |
| Dimensions | 15 Width x 12 Length x 7 Height (Inch) |
| Weight | 8 Kg |
| Colour | Pearl White |
| Pump Mechanism | Conventional Pump |
| Sample Storage | 100000+ |
| Language/s | Mono Languages (English) |
| Auto Sampler | Not Available |
| Principle | Direct Measurement with ISE |
| Parameter Combinations | 12 Combinations |
| Keypad | Alphanumeric |
| Operating System | Embedded C |
| External Battery | Available (Optional) |
| Input Voltage | 110/115-V AC, 50-60 Hz or 220V AC, 50-60 Hz, 0.75 amp. |
| Print Result | 2 Inch 24 Column Thermal Printer |
| Operating Atmosphere | Temperature: 5 - 40 Degrees C, <85% Moisture |
| Acquirable Results / Hour | 55 Results |
| Result Time | 60 Seconds |
| Sample Mechanism | Semi Auto Sampling (Flip/Slider) |
| Display | 128*64 Alphaneumeric Display |
