Merilyzer EIA Quant™
Merilyzer
Machines & equipment

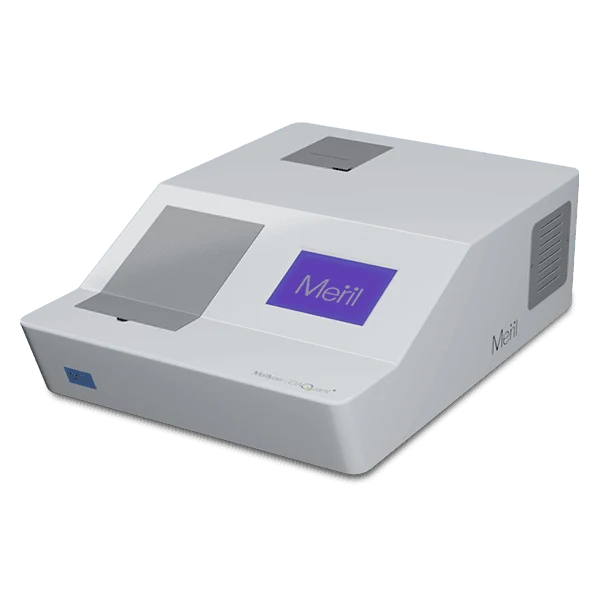

Meril Merilyzer EIA Quant ELISA reader measures absorbance in microplates for diagnostic tests, helping labs with ELISA result analysis.
01 / A CLOSER LOOK
Features that
define the product.
- An interactive large LCD touch screen enables ease of operation
- EIAQuant™ incorporates functions like Self Diagnosis, Copy Test function & Rerun option
- EIAQuant™ uses Halogen as light source with eight channel fiber optics optical system
- High dynamic range of 0 to 4.0 OD significantly increases assay linearity and enables reliable interpretation
- Four standard spectral filters: 405nm, 450nm, 492nm, 630nm with 3 optional filter positions
- Monochromatic and Biochromatic Reading for accuracy
- Reading Speed : 6.5 seconds at single wavelength & 16 seconds at dual wavelength
- Inbuilt QC up to 4 levels of control sera with L-J graph
- Built in thermal printer
02 / TECHNICAL DETAILS
Specifications.
| Item | Description |
|---|---|
| Programmable Tests | 100 |
| Microwell Types | Flat, U, and Round bottom |
| Washing Manifold | 8 and 12 Channels |
| Display | 192 x 64 pixel STN-Blue monochrome LCD with LED backlight |
| Programmable Wash Cycle | 0 to 255 |
| Washing System | 1 wash buffer bottle, 1 rinse water bottle, 1 pressure bottle, 1 waste liquid bottle with liquid level sensor |
| Shake Rate | 1 to 5 levels |
| Shake Time | 0 to 255 sec |
| Soak Time | Minimum 0 sec to maximum up to 60 min and 60 sec |
| Residual Volume | < 2 µl |
| Washing Accuracy | < ± 3% at 300 µl |
| Wash Liquid Volume Range | 50–400 µl (with increment of 50 µl) |
| Relative Humidity | < 95% |
| Power Supply | 100–240 VAC, 50/60 Hz (55W max) |
| Operating Environment | 5°C to 40°C |
| Dimensions | 390 mm (W) × 410 mm (L) × 330 mm (H) |
| Weight | Approx. 11.5 Kg |
