Meril Life Sciences / Hematology & Coagulation

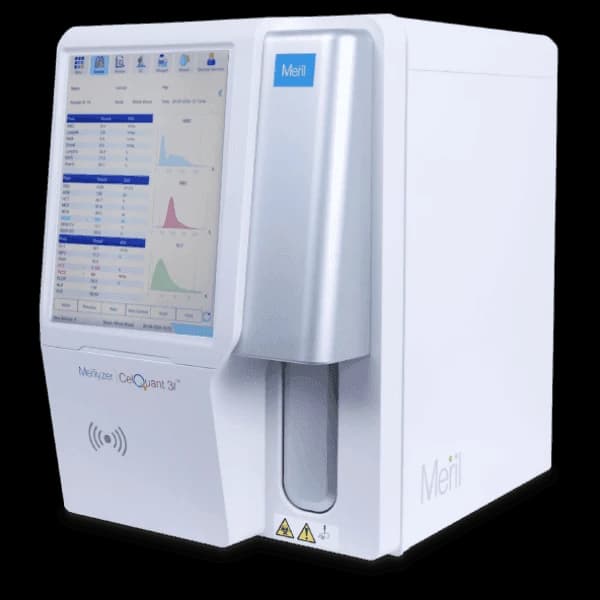

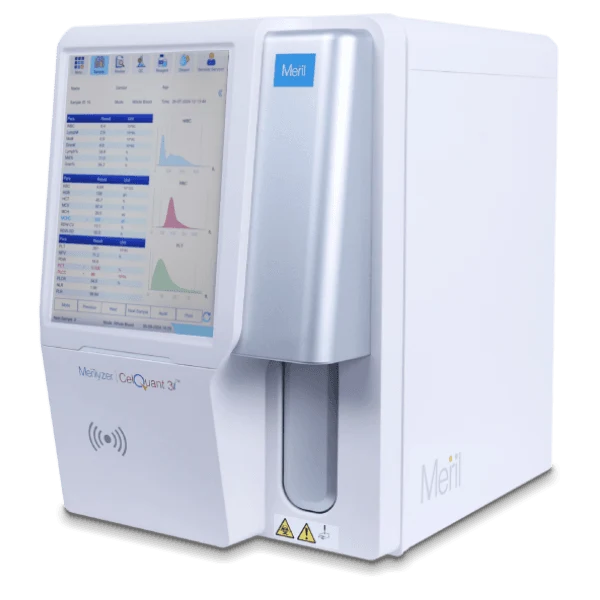

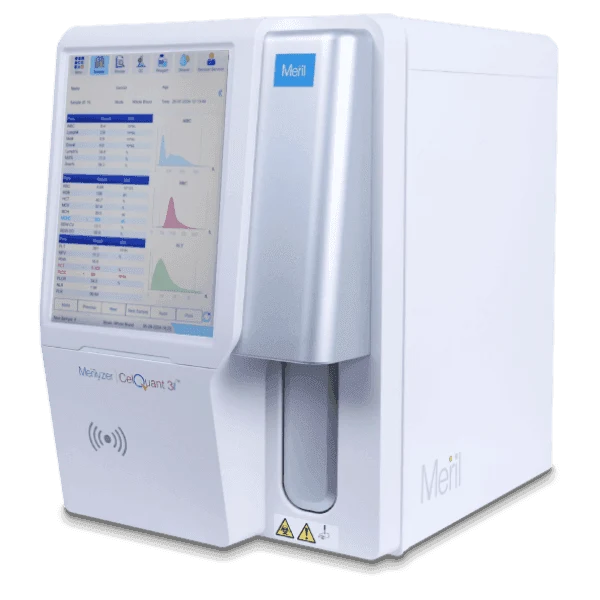

Merilyzer Celquant 3i™
3-Part Differential Analyzer
Machines & equipment
Meril Merilyzer Celquant 3i is a 3 part differential analyzer developed for CBC testing and blood cell counting in laboratories.
01 / A CLOSER LOOK
Features that
define the product.
- Supports 20 diagnostic parameters for comprehensive blood analysis
- Advanced LIS connectivity for seamless data integration and management
- Compact and ergonomic design suitable for small and medium-sized laboratories
02 / HOW IT WORKS
The technology.
Detection Principle - Impedance method (WBC, RBC, PLT) and Cyanide-free colorimetric method (HGB)
03 / TECHNICAL DETAILS
Specifications.
| Throughput | 60 Samples/hour |
|---|---|
| Detection Channel | Dual-channel for counting |
| Sample Volume | Minimum volume 9 µl whole blood |
| Counting Modes | Whole blood mode, pre-diluted mode |
| Detection Principle | Impedance method (WBC, RBC, PLT) and Cyanide-free colorimetric method (HGB) |
| Parameters | Max. 21 parameters: WBC, Lym#, Mid#, Gran#, Lym%, Mid%, Gran%, RBC, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, HGB, P-LCC, P-LCR, PLR (optional), NLR (optional), 3 histograms, alarms for abnormal erythrocytes, leukocytes, and platelets |
| Reagent | Diluent, Lyse |
| Net Weight | ≤ 28 kg |
| Report Print | Built-in thermal printer Supports multiple USB printers Multiple built-in report templates |
| Display Type | 10.4 inch vertical color display with touch panel |
| Storage | 5,000,000 sample results including histogram and patient information |
| Input/Output | 4 USB ports, Bi-directional LIS connection Supports USB keyboard, mouse, disk, and printer |
| Operating Environment | Temperature: 10°C – 35°C Humidity: 20% – 85% |
| Power Supply | 100–240V AC, 50/60 Hz, ≤150V AC |
| Dimension (mm) | 420 (L) × 295 (W) × 430 (H) |
