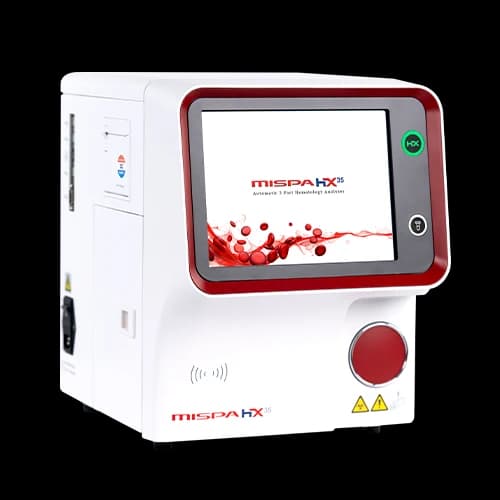

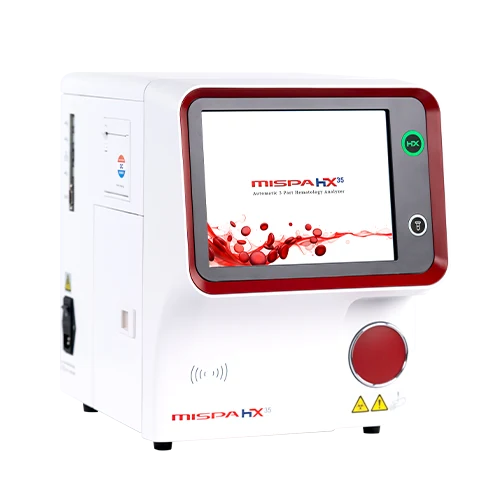

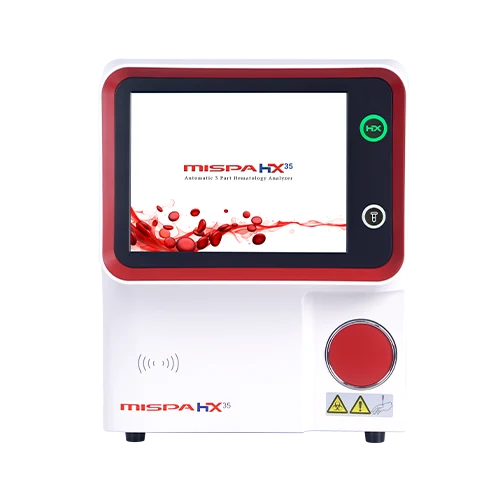

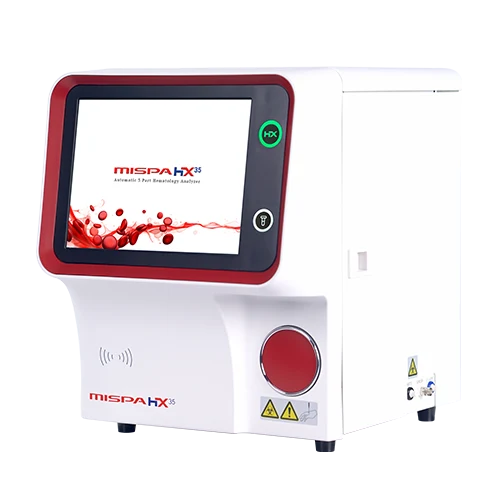

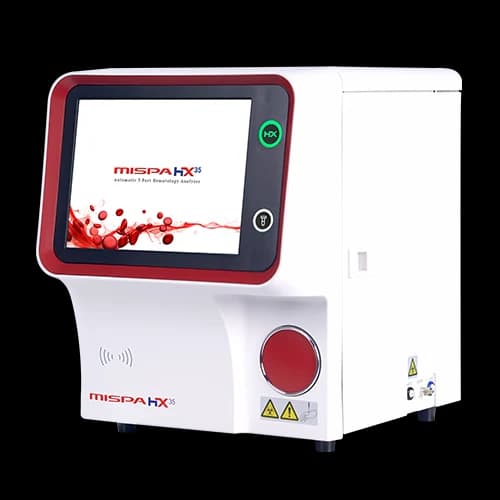

Mispa HX35
Automatic 3 Part Differential Hematology Analyzer
Machines & equipment
Mispa HX35 is listed in Agappe’s hematology collection as a automatic 3 Part Differential Hematology Analyzer.
01 / A CLOSER LOOK
Features that
define the product.
- 10.4" LCD touch screen display
- Throughput : 72 Tests/Hr
- 24 parameters + 3 histograms
- Two reagent system with RFID
- Transducer Impedance Counting (TIC) Technology
- Whole blood 8.5 ul & Prediluted 20 ul
- Data storage up to 10,00,000 results with histogram
- LIS/HIS compatibility with HL7 protocol
- Auto Clog removal function
- Research Parameter like NLR & PLR
- High Precision Syringes for Liquid Handling.
- Peripheral Device Connectivity ( like Mouse, Keyboard, Printer, Barcode Scanner )
02 / HOW IT WORKS
The technology.
TIC – TRANSDUCER IMPEDANCE COUNTING In hematology, transducer counting refers to the process of using a sensor to detect and count blood cells, based on changes in electrical impedance. This principle involves measuring the changes in electrical resistance as cells pass through a small aperture between electrodes, momentarily increasing electrical resistance, which is measured as an electronic pulse.
